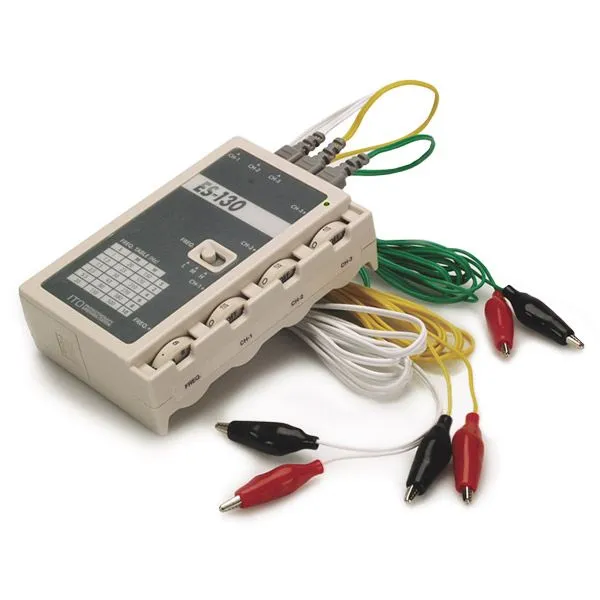

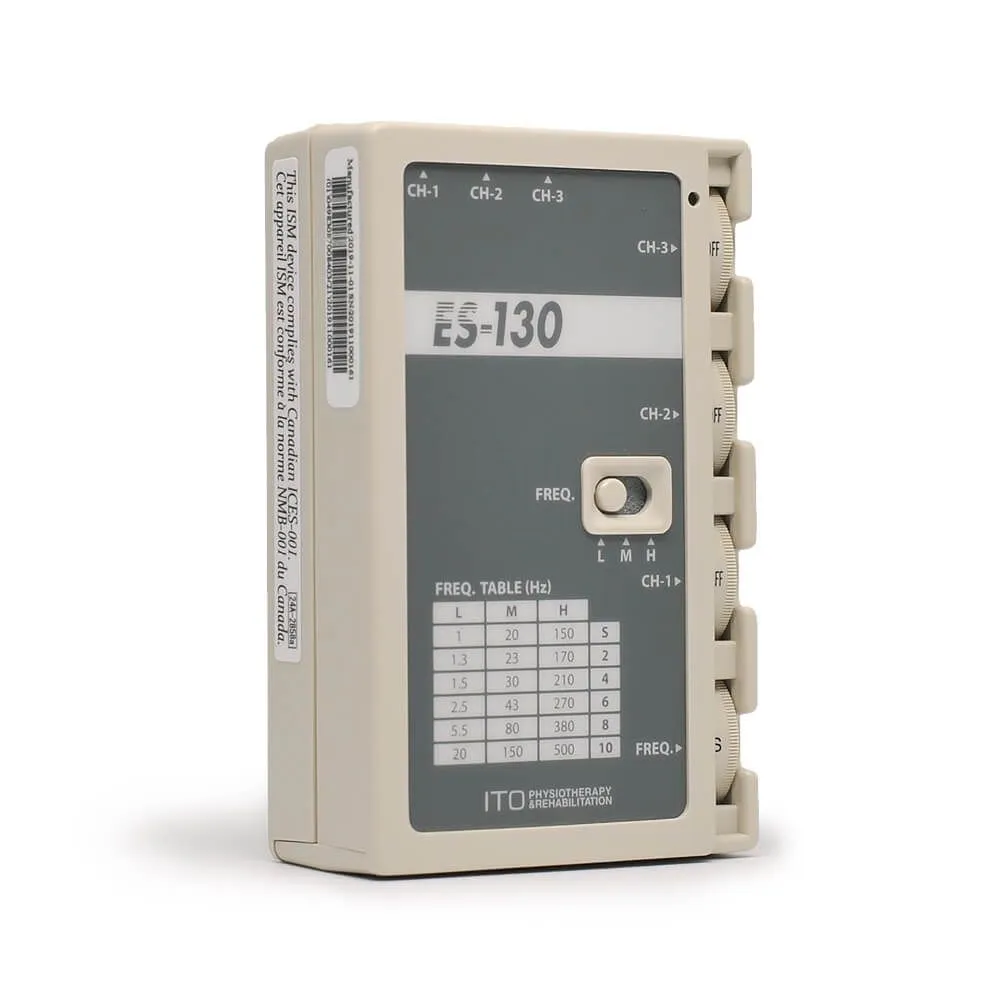

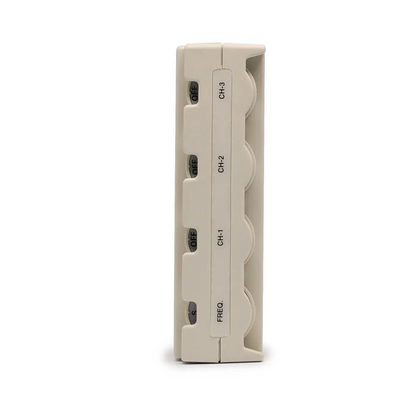

ITO® ES-130 3 Channel Professional Electro-Therapy Device
ITO® ES-130 3 Channel Professional Electro-Therapy Device
Impossible de charger la disponibilité du service de retrait

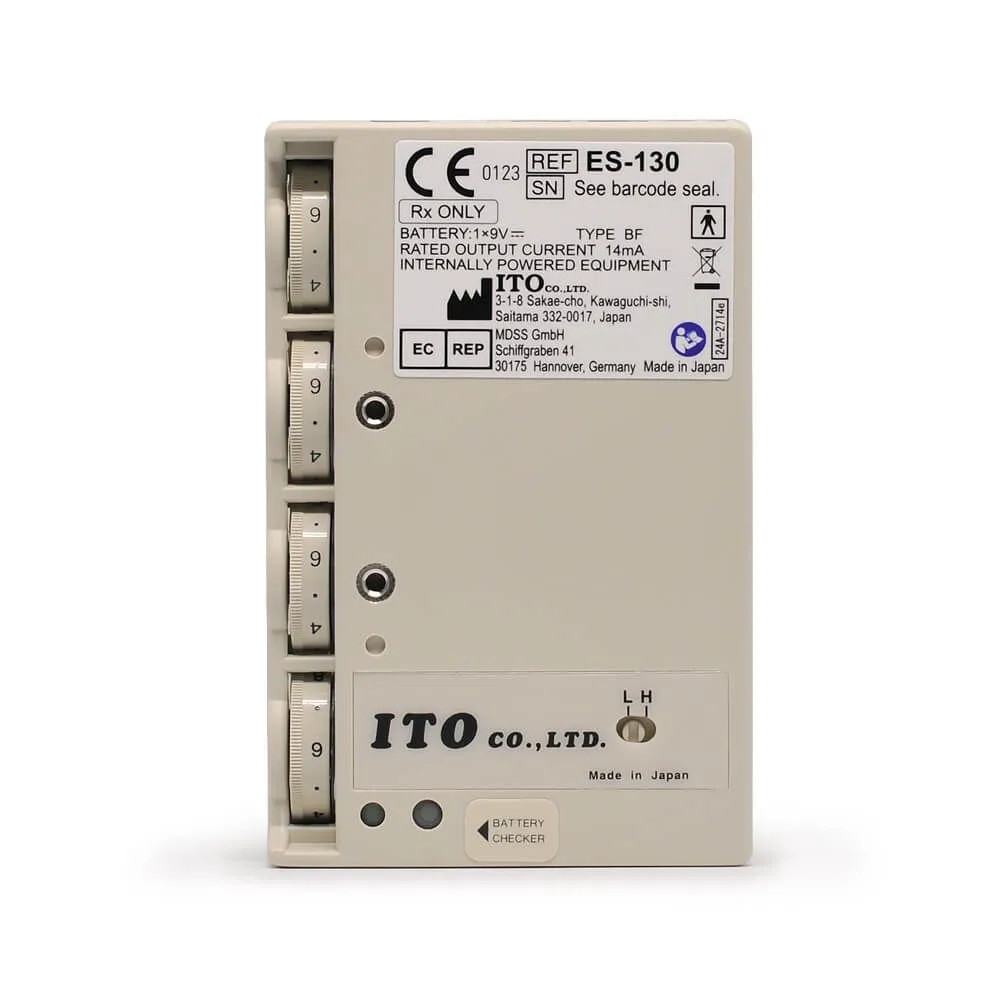

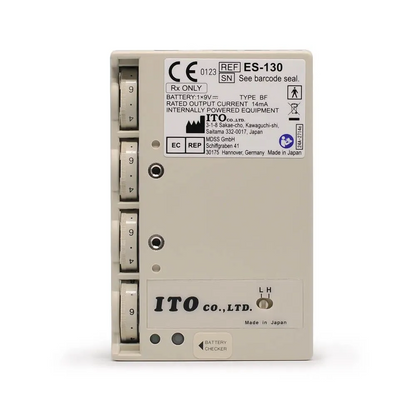

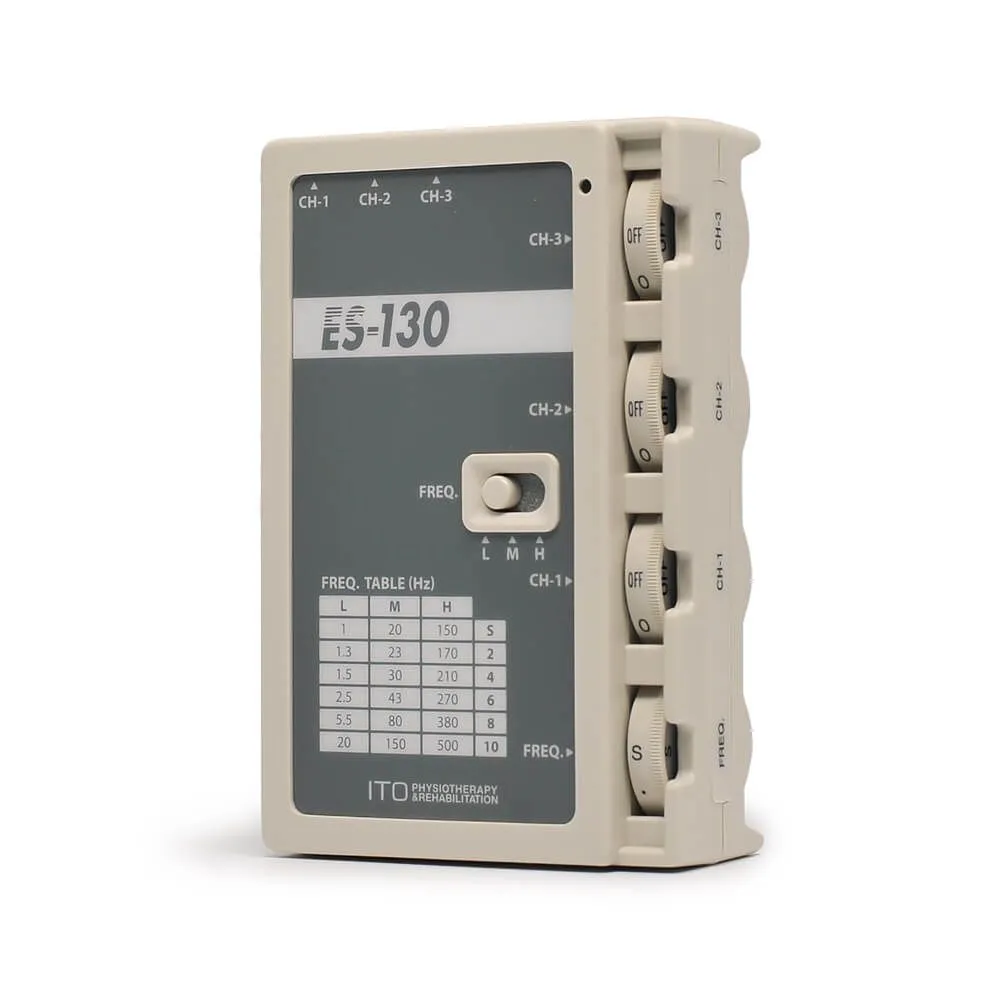

The ES-130® is a compact, sturdy, high quality Japanese electro-therapy device that is light weight and fits in the palm of your hand. Featuring a High/Low switch on the back of the unit, the switch is toggled to Low to facilitate use with needles or to High for MEA electro-therapy. It offers three independently controlled output channels with adjustable frequency indicated by a flashing light. The waveform is a unique biphasic pulse which has been designed to minimize electrolysis damage to the needle.
The pocket-portable ES-130 is the smallest and smartest looking professional electro-therapy unit in the world, for use in or out of the office. This unit is not equipped with a point locator.

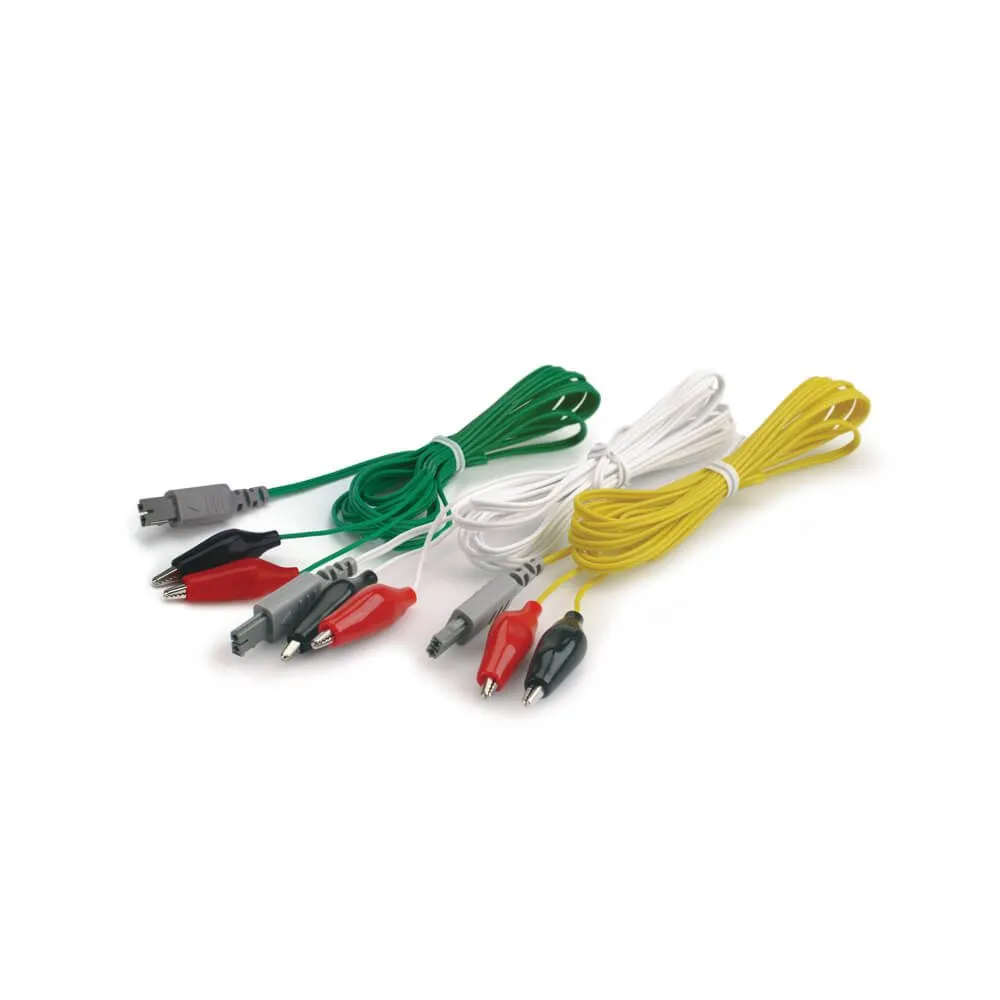

Accessories include 3 sets of new CE wire leads with rectangular CE jack, carrying case, and instructions. Does not include battery.
Warranty: 1 year, unit only
Webinars
Intro to Electro-Acupuncture Medicine featuring Dr. Jeremy Steiner
Treating Heart Disease with Electro-Acupuncture Medicine featuring Dr. Jeremy Steiner
| Specifications | 500 ohm test load |
|---|---|
| Output Channels: | 3 Independent Intensity Channels |

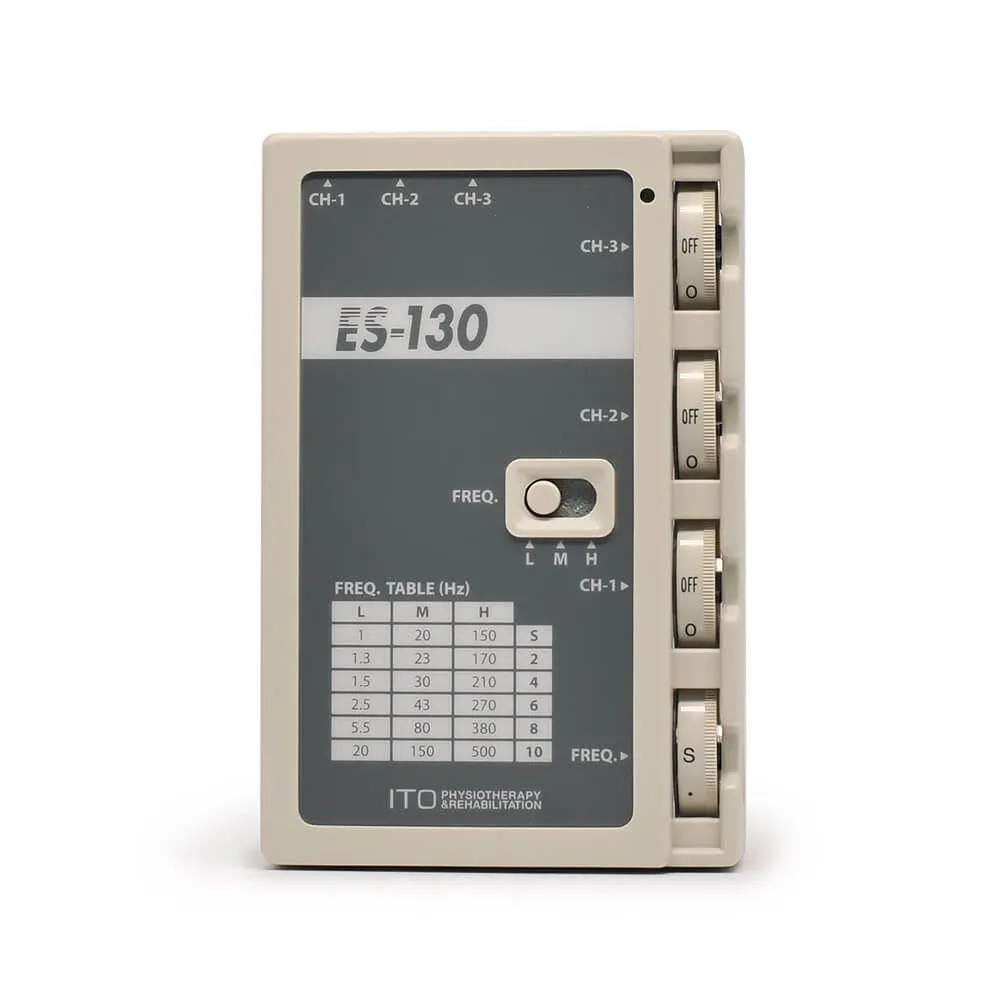

| Frequency (Adjusted With The Fine Frequency Dial): | L - 1-20 Hz M - 20-150 Hz H - 150-500 Hz |
| Low Volts And Current: | 0-10 Volts, 0-20 Milliamps |
| High Volts And Current: | 0-20 Volts, 0-40 Milliamps |
| Voltage, Max: | 30 Volts |
| Pulse Width: | 100 Microseconds (ΜS) |
| Pulse Shape: | Asymmetric Biphasic Square Wave |
| Pulse Modes: | Continuous |
| Power Source: | 9 Volt Battery |
| Frequency Indicator: | Flashing Red Light |
| Size, Weight, Color: | 4.5" X 3.2" X 1.2", 0.3 Lbs., Gray |
