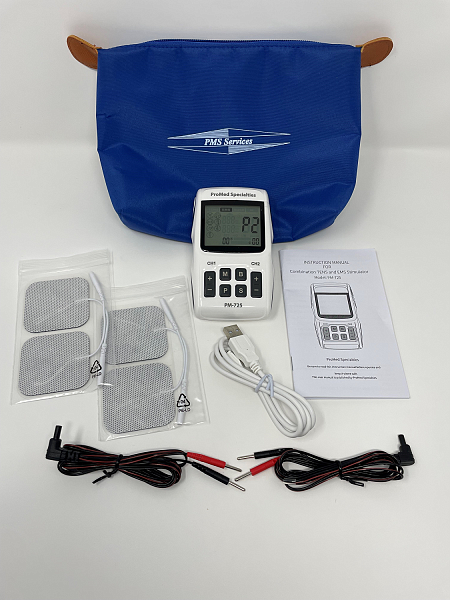

PM-725 TENS & EMS Combo Unit
PM-725 TENS & EMS Combo Unit
Couldn't load pickup availability
PM-725 is a dual channel output TENS (Trans-cutaneous Electrical Nerve Stimulation), and EMS (Electronic Muscle Stimulation) stimulator.
SPECIFICATION
4.1Technical information
Device name
Model/type PM-725
Power sources3.7 V Li-ion battery
Power supplyInput: 100-240V AC, 50/60Hz,0.2A; Output: 5V
DC, 300mA
Output channel Dual channel
WaveformBi-phase square-wave pulse
Output currentTENS/EMS: 0~90mAAt 1000 ohm load
Combination TENS and EMS Stimulator
Output intensity
0 to 90 levels, adjustable
Treatment mode:
TENS and EMS
Number of programs
TENS: 30 programs
EMS: 20 programs
Pulse rate
TENS: 1~125Hz
EMS: 20~125Hz
Pulse width
TENS: 50~380μs
EMS: 50~380μs
Treatment time
5 minutes ~ 90 minutes
Operating condition
5°C to 40°C with a relative humidity of 15%-93%, atmospheric pressure from 700 hPa to 1060 hPa
Storage condition
-10°C to 55°C with a relative humidity of 10%-95%, atmospheric pressure from 700 hPa to 1060 hPa
Dimension
120.5x69.5x27 mm (L x W x T)
Weight
About 115g
Automatic shutoff
1 minute
Classification
BF type applied part, internal power equipment, IP22
Size of electrodes pad
50x50mm, square
Output precision
±20% error is allowed for all the output parameters
Device service life
2 years
Electrode pads re-use life
10-15 times
Software version
V1.0
Properties: WARRANTY Please contact your dealer or the device center in case of a claim under the warranty. If you have to return the unit, enclosing a copy of your receipt with clear statement of defect description. The warranty terms are as below: 1. The warranty period for this device is 1 year from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice. 2. Repairs under warranty should be in the warranty period either for the device or for the replacement parts. 3. The following cases are excluded under the warranty • All damages that arise due to improper operation, e.g. nonobservance of the user instruction. • All damages due to repairs or tampering by the customer or unauthorized third parities. • Damage which has arisen during transport from the manufacturer to the consumer or the service centre. • Accessories which are subject to normal wear and tear. • Device damages due to privately dissembling devices. 4. Liability for direct or indirect consequential losses caused by the unit is excluded even if the damage to the unit is accepted as a warranty claim.
