Sedatelec Premio 20DT VET Detector and Electro-Therapy Device

The Premio 20DT VET is a detection and electro-stimulation device used to assist with diagnosis and treatment in auriculotherapy and in acupuncture. It features cutting edge technology from Sedatelec, pioneers in the development of the first auricular point detectors. Ideal for both the treatment room and portable use, this easy-to-use lightweight ergonomic detector/simulator is effective for point location and stimulation. This versatile device also includes a grounding clip for easy use during veterinary treatments.

Warranty: 2 years

Key Benefits & Features

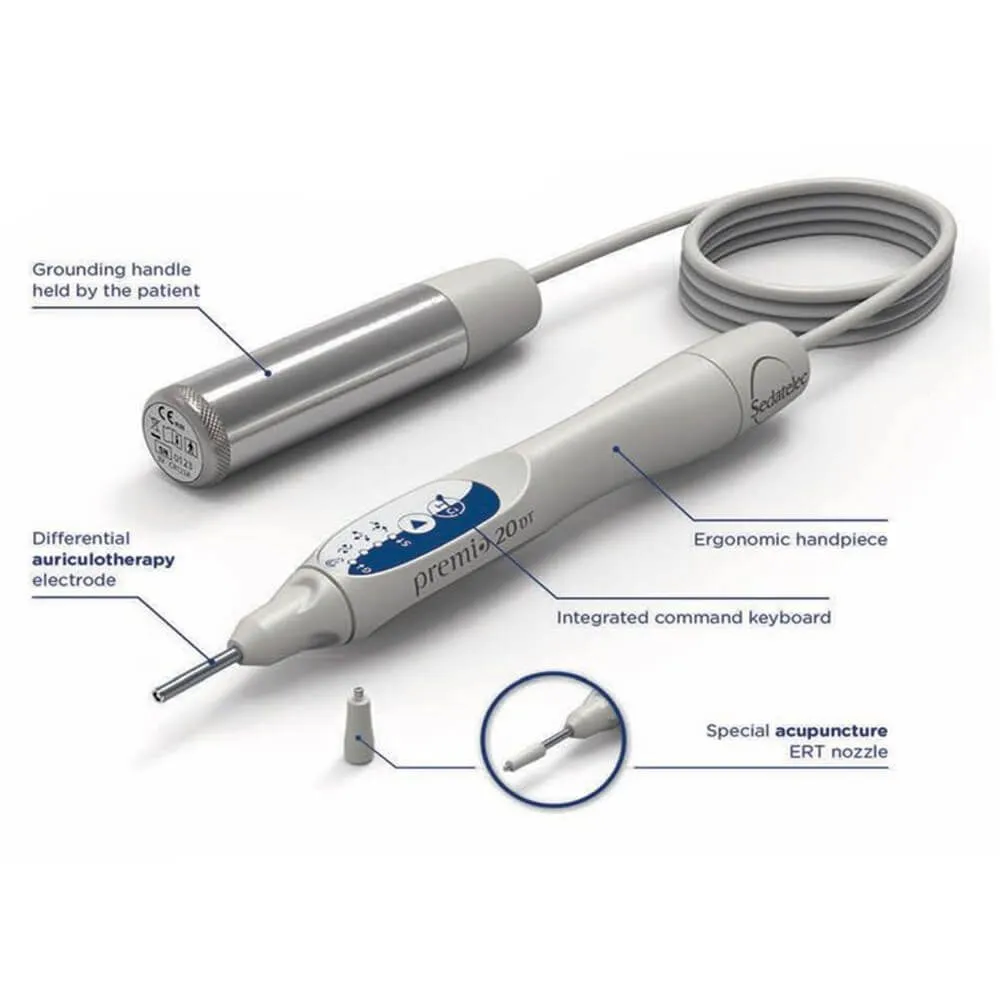

• Pinpoint-accurate detection with direct reading at the tip of the handpiece
• Simple to use with continuous display of variations in detection

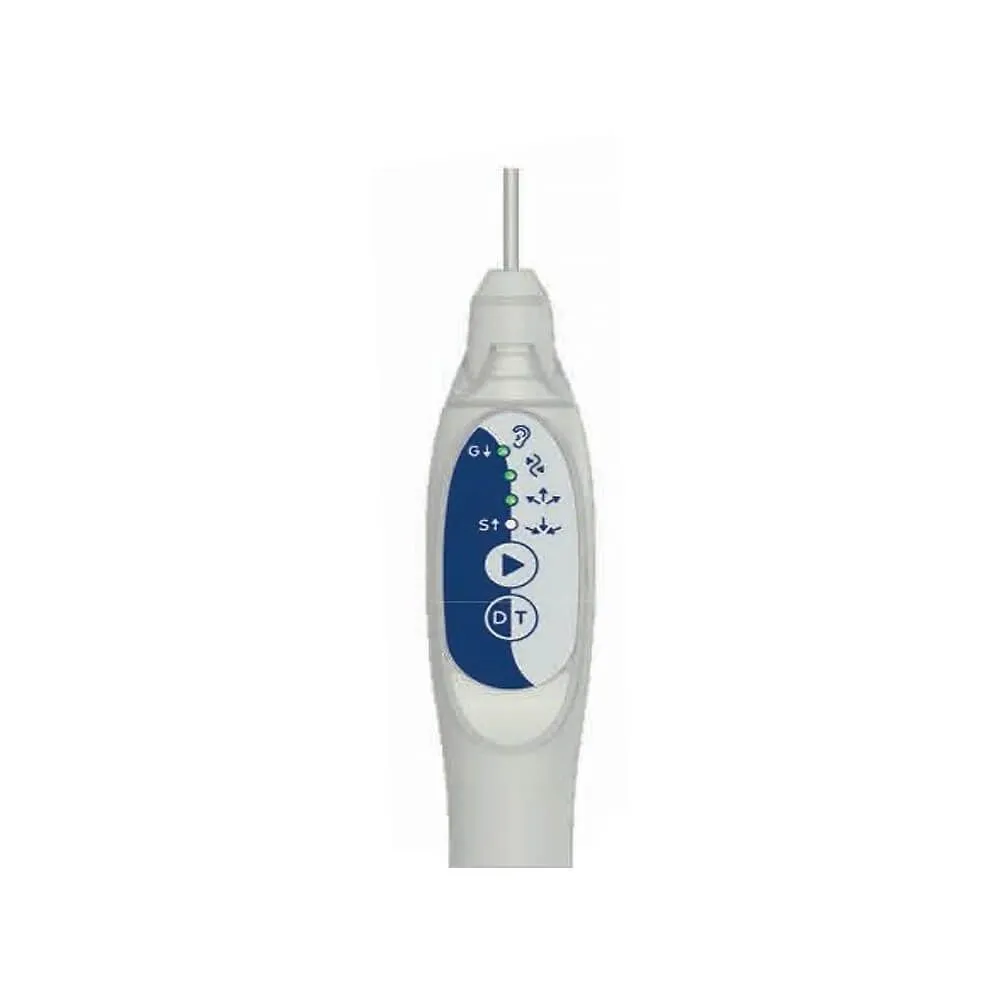

• Intuitive design with an ergonomic keyboard, visual, and audible aids
• Automatic calibration of point stimulation intensity

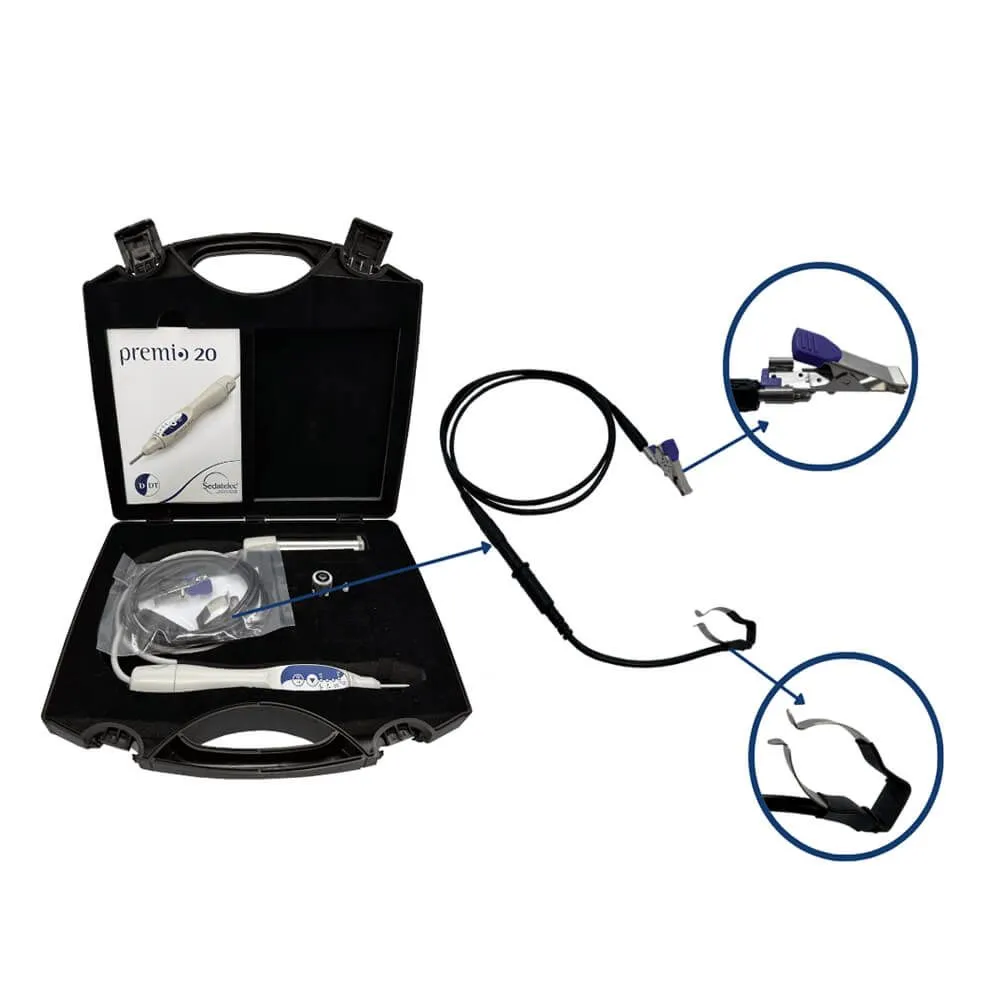

• Grounding clip for veterinary treatments

Modern Design
• Ergonomic: the first device with direct reading from the ear
• Accurate: 9 level differential detection with LED display
• Innovative: frequency wobulation in stimulation mode between 1 and 100 Hz

Detection:
Auriculotherapy: 2 programs
• Low impedance (G)
• High impedance (S)
• Visual and auditory display of the intensity of the detected point
• Highly accurate differential detection system (point and environment)
• Low (Gold) or high (Silver) impedance detection possible
• Continuous measurement, display on 9 levels

Acupuncture:
• Soft-tipped ERT nozzle
• Memorization of the detected skin point with the lowest impedance
• Visual and auditory display of the intensity of the detected point
• Special Body ERT nozzle with soft tip for perfect sliding

Other features:
• Sufficiently low measurement current not to interfere with the point.
• Constant measurement electrode pressure on the epidermis.
• Direct instantaneous reading of the measurement on the stylet confirmed by an audible signal.

Stimulation:
A simple press on the keyboard without taking your eyes off the point being treated enables you to provide appropriate stimulation:
• By scanning Nogier frequencies* (ideal for Auriculotherapy)
• By frequency modulation:

• Ascending between 1 and 100 Hz to tonify
• Descending between 100 and 1 Hz to sedate

• Alternating from 1 to 100 Hz and 100 Hz to 1 Hz for harmonization

Other features:
• Pressing again on «D/T» restarts detection without taking your eyes of the ear which is being investigated.
• Automatic adaptation of stimulation intensity: no pain or burning sensation.
• Duration time set by a louder audible signal every 30 seconds.

Power Source: CR123A battery (included)

Download an informative brochure for the Sedatelec Premio 20 DT.
